Three Screw Pumps

CTP Pumps was licensed three screw pump manufacturing technology — with 8 series and 1,024 specifications — from Allweiler GmbH, Germany in 1984. All series have reached an international advanced level, with characteristics of standardization, serialization and universalization.

Over four decades of continuous manufacturing under Allweiler’s engineering standards have made CTP Pumps one of China’s most experienced three-screw pump manufacturers. Our complete 8-series range covers virtually every pressure, flow, viscosity and installation requirement in industrial and marine applications.

Design Features

Self-priming, good suction performance
Can be used for a wide range of media, including liquids with slight lubricity
Fluctuation of capacity is very small, which allows it to run smoothly with low vibration and noise
High efficiency, energy-saving, and high reliability
Long service life, easy maintenance, and low operating cost

Three screw pump cutaway view by CTP Pumps— cross-section diagram showing internal triple screw mechanism and fluid flow path

Application Fields

Installed in various oil transfer systems, lubrication systems, hydraulic systems, and process cooling systems, serving the petrochemical, power, metallurgy, steel, shipping, and machining industries.

Media To Be Transferred

Transports various clean lubricating liquids, such as lubricating oil, mineral oil, synthetic hydraulic oil, and natural oil. It can also reliably transfer media with poor lubricity, such as light fuel oil, heavy fuel oil, asphalt, viscose, and emulsions.

Product Range

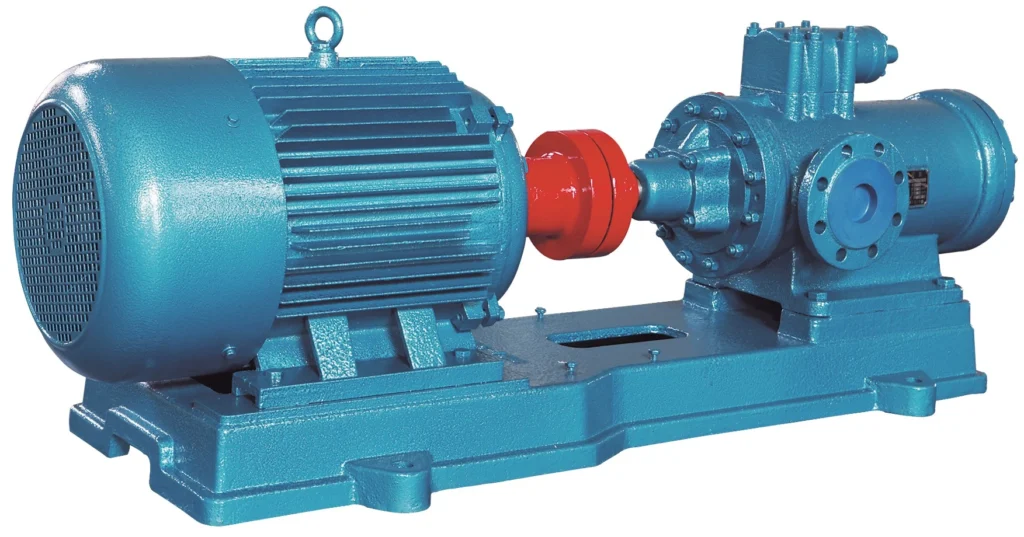

3G Series

Specs highlight: Max 575 m³/h · Max 10.0 MPa · Max 150°C · 12 kinds

The broadest-coverage series in the CTP three-screw pump range. 12 type variants spanning 25–52,000 size designations. Multi-mounting (horizontal, flanged, vertical). The workhorse series for general industrial lubrication.

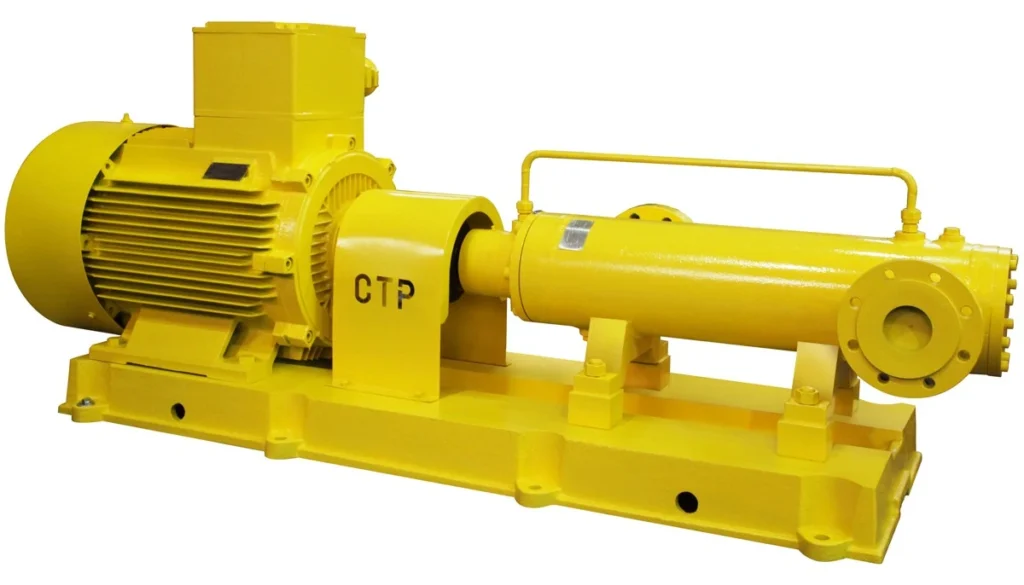

SD Series

Specs highlight: Max 10 m³/h · Max 21 MPa · Max 80°C

The highest-pressure series in the CTP range, rated to 21 MPa. Available in 20/40/80 sizes. Installs vertically, horizontally, or in submersible configurations — suited for extreme-duty hydraulic power units.

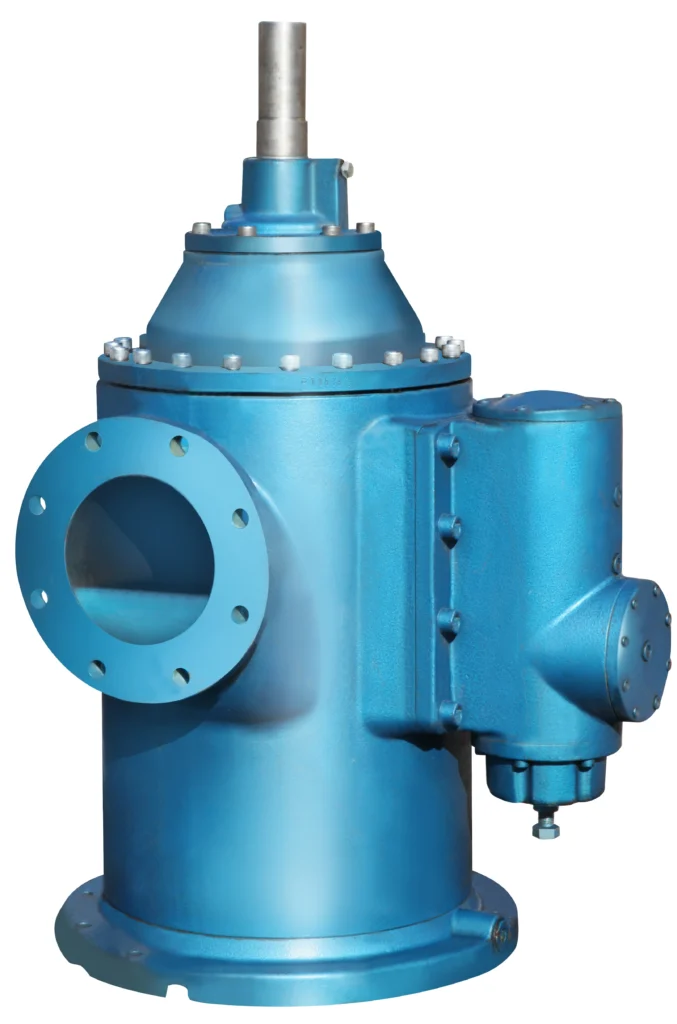

SZ Series

Specs highlight: 16–550 m³/h · Max 1.6 MPa · Max 80°C

Double-suction three screw pump for high-volume, lower-pressure transfer. 4 frame sizes (940/1,300/2,200/9,400). Horizontal and vertical mounting. Ideal for large-scale fuel oil transfer and cooling systems.

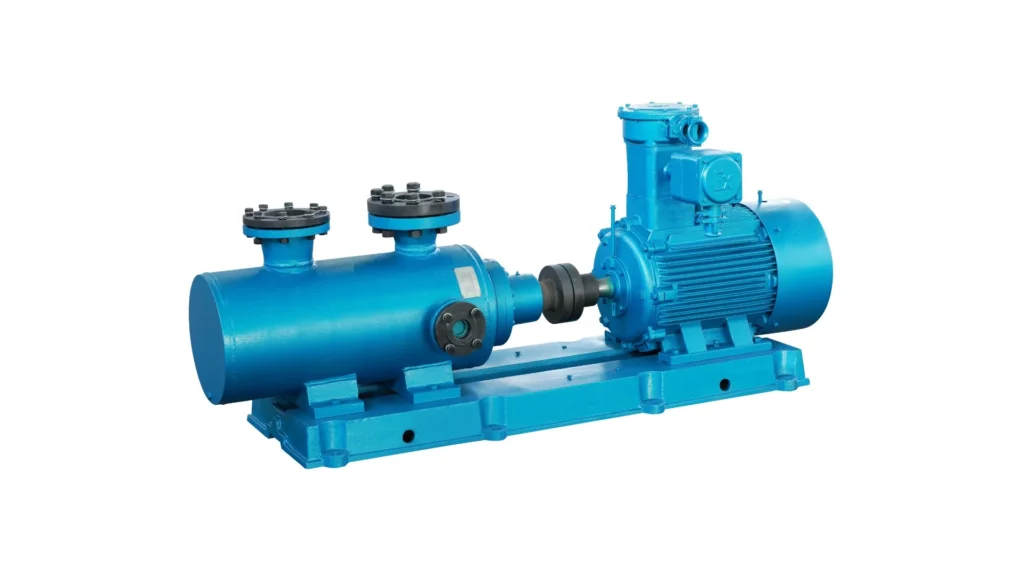

SM Series

Specs highlight: Max 200 m³/h · Max 10.0 MPa · Max 150°C

Medium-flow, high-pressure three screw pump for demanding lube oil and process systems. 12 specification variants in the 40–2,900 size range. Multi-mounting compatible.

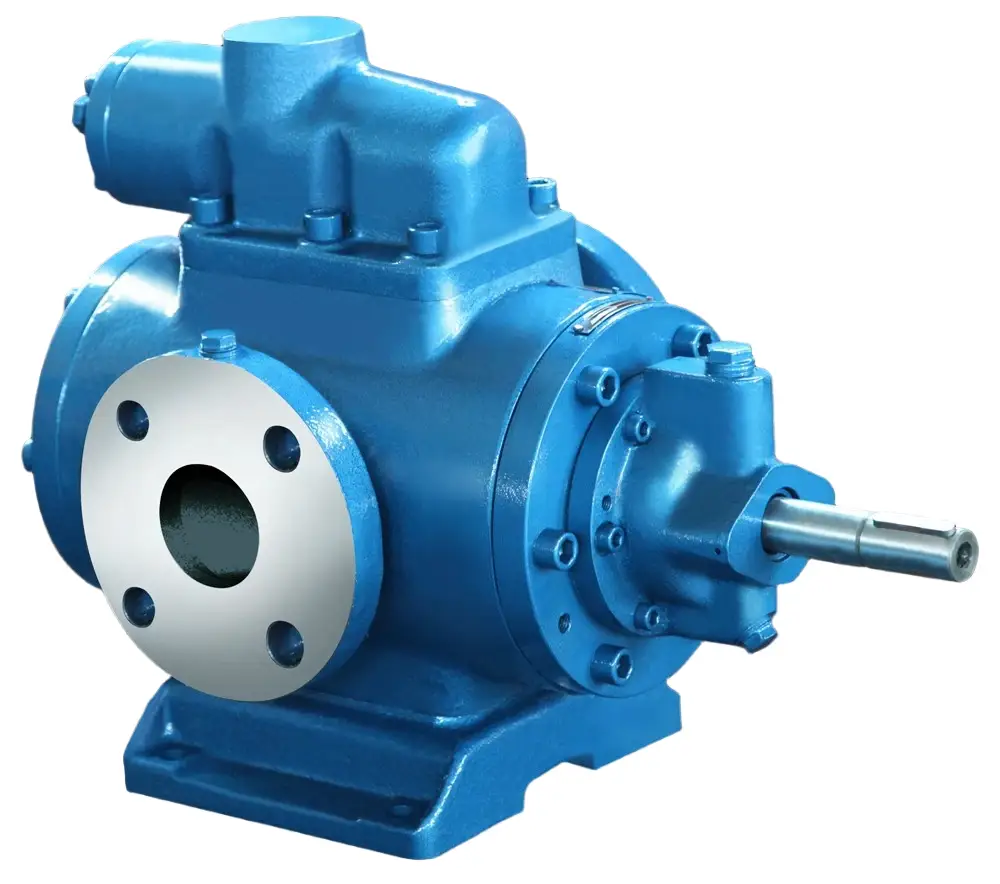

SN Series

Specs highlight: Max 318 m³/h · Max 4.0 MPa · Max 150°C

General-purpose, high-volume three screw pump for standard lubrication and oil supply systems. Available in 40–5,300 sizes with 14 specification variants. Installs horizontally, vertically, flanged or wall-mounted.

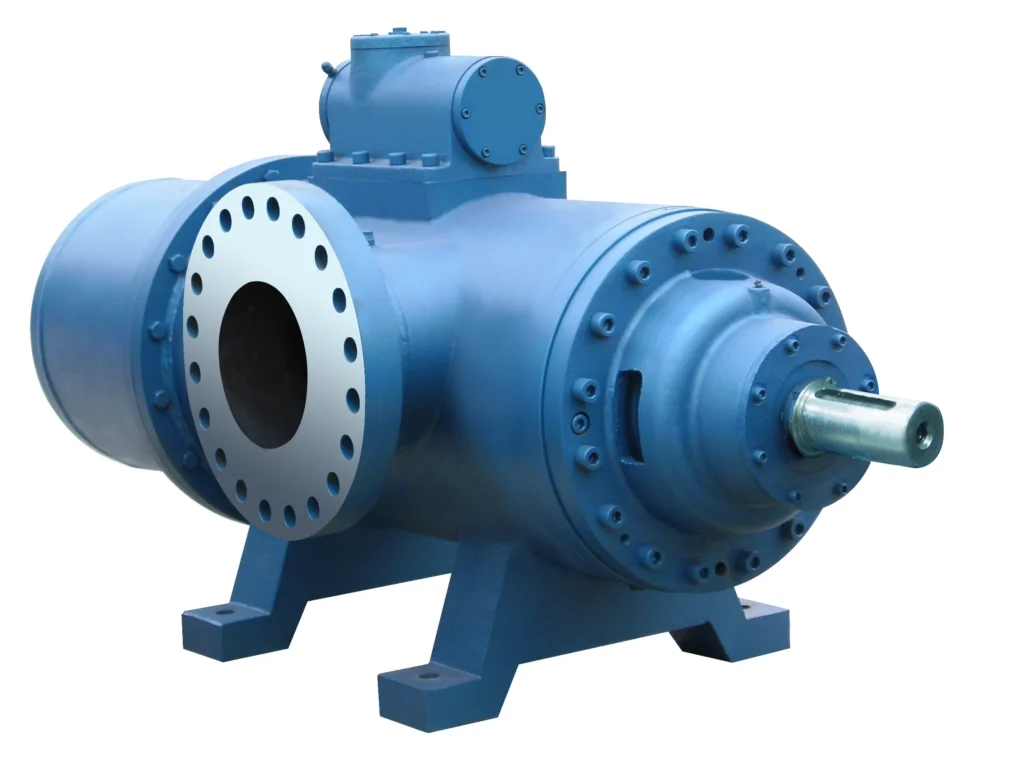

SNHG Series

Specs highlight: Max 450 m³/h · Max 4.5 MPa · Max 150°C

Large-capacity horizontal-mounted three screw pump for central lube oil supply systems and power plant applications. 3 frame sizes (5,300/7,400/9,400). Horizontal installation only.

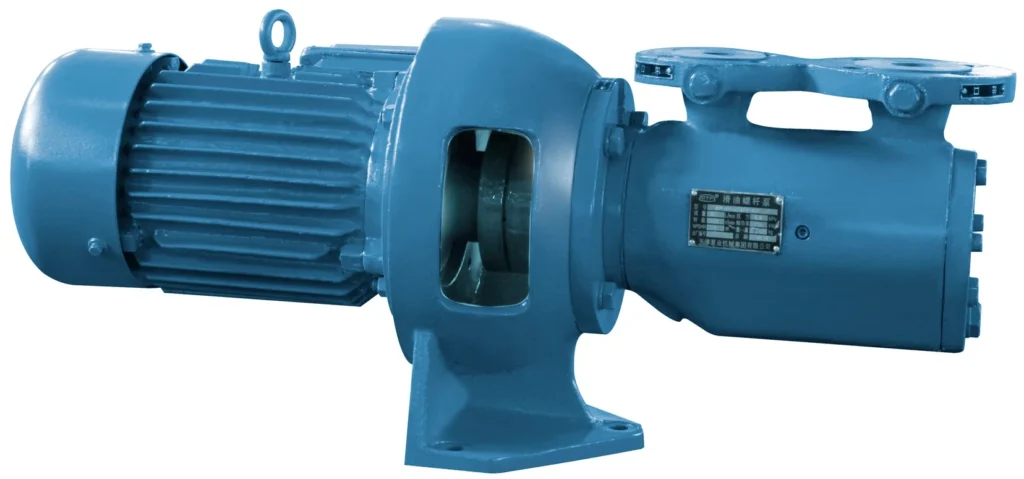

SPF Series

Specs highlight: Max 6.7 m³/h · Max 4.0 MPa · 3–7,600 cSt

Flanged-only three screw pump with the widest viscosity handling in the range — up to 7,600 cSt. For very high-viscosity oils, heavy fuel oil and bitumen. Available in 20/40 sizes.

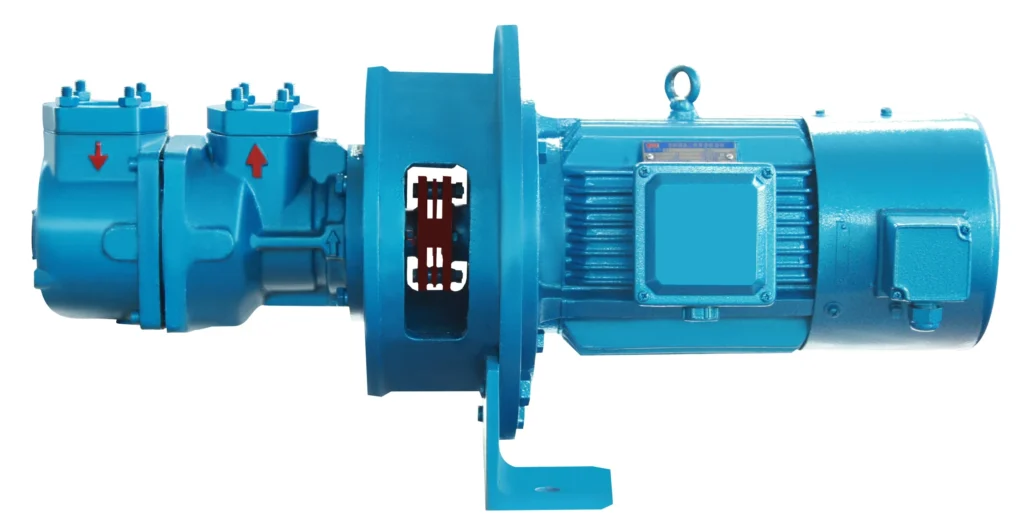

S3F Series

Specs highlight: Max 3.1 m³/h · Max 10.0 MPa · Max 80°C

Compact high-pressure three screw pump with 6-position lantern mounting. Vertical, horizontal and flanged installations. For precise lubrication in machine tools and hydraulic circuits.

Technical Specifications

Series	Specifications	Max Flow (m³/h)	Max Diff. Pressure (MPa)	Max Speed (rpm)	Max Temp. (°C)	Viscosity (cSt)	Installation
SN	40–5,300 · 14 variants	318	4.0	3,400	150	3–3,750	Horizontal / Vertical / Flanged / Wall
SM	40–2,900 · 12 variants	200	10.0	3,400	150	3–3,750	Horizontal / Vertical / Flanged / Wall
SL	40–1,300 · 9 variants	80	1.6	3,400	80	3–3,750	Horizontal / Vertical
SF	20	3.1	10.0	3,400	80	20–380	Vertical / Horizontal / Flanged
SE	20	3.1	16.0	3,400	80	20–380	Vertical / Horizontal / Flanged
SD	20 / 40 / 80	10	21.0	3,400	80	30–380	Vertical / Horizontal / Submersible
SZ	940 / 1,300 / 2,200 / 9,400	550	1.6	1,750	80	3–3,750	Horizontal / Vertical
SPF	20 / 40	6.7	4.0	3,400	150	3–7,600	Flanged
SNHG	5,300 / 7,400 / 9,400	450	4.5	1,450	150	3–760	Horizontal
3G	25–52,000 · 12 kinds	575	10.0	3,000	150	3–760	Horizontal / Flanged / Vertical

Overall Range Summary

Max Flow Rate	575 m³/h
Max Differential Pressure	max. 21.0 MPa
Max Speed	max. 3600 rpm
Max Temperature	max. 250 ℃
Viscosity Range	max. 7000 cSt

Need a datasheet for a specific series?

Download Product Brochures →

Not sure this model fits your application?

Use Pump Selection Tool →

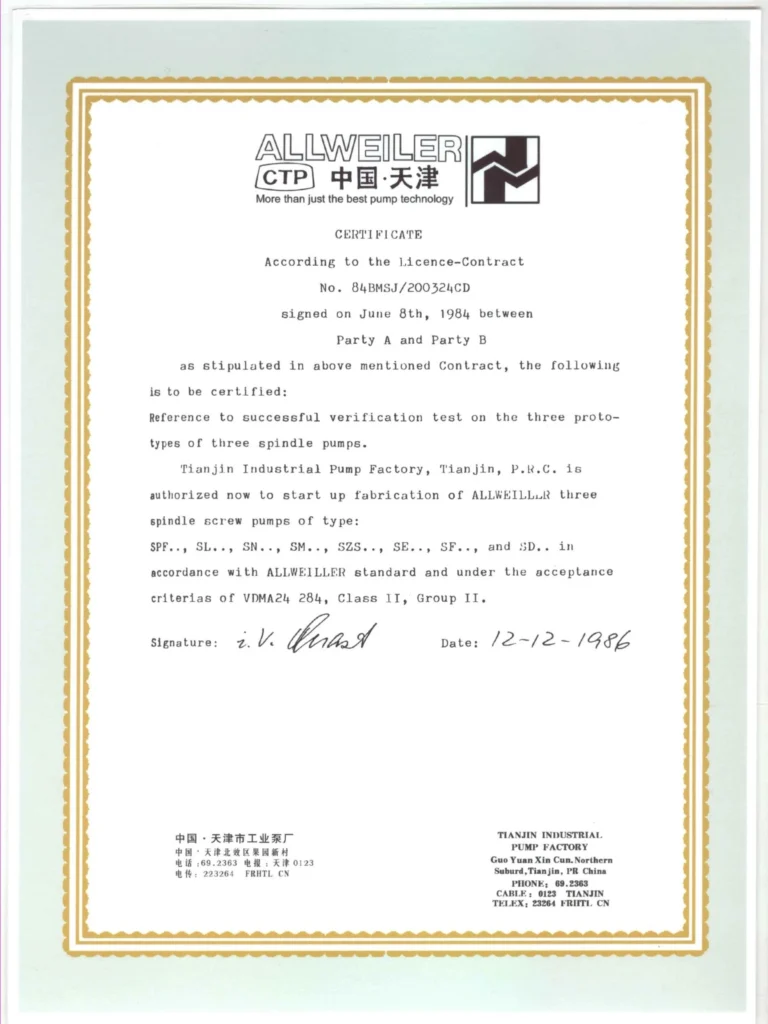

Allweiler Technology Certification

In 1984, our company introduced three screw pump manufacturing technology from Allweiler, Germany. After years of continuous improvement and R&D, all our products have reached an advanced level of standardization, serialization, and universalization.
