Eccentric Helical Rotor Pumps

CTP Pumps manufactures eccentric helical rotor pumps (also known as progressive cavity pumps or single screw pumps) under technology licensed from Bornemann GmbH, Germany since 1993. Our 6-series range with 15 model variants covers horizontal, submersible, and easy-clean configurations for a wide spectrum of challenging industrial media.

Eccentric helical rotor pumps are uniquely suited for transferring high-viscosity, shear-sensitive, fibrous, solid-laden, and non-flowing fluids that cannot be handled by conventional pump types. With a simple structure and gentle pumping action, they deliver reliable, uninterrupted flow even with the most difficult media.

Design Features

Good self-priming ability
Simple structure
Economical & durable
Insensitive to impurities in the liquid
High usability & reliability

CTP eccentric helical rotor pump — single screw progressive cavity design

Application Fields

Optimised solutions are available for almost any application, including the shipbuilding industry, sewage treatment plants, the architectural industry, the petroleum and chemical industry, oil refineries, the chemical industry, food and pharmaceutical industries, and the viscose industry.

Media To Be Transferred

It is suitable for transporting neutral or corrosive liquids, clean or abrasive liquids, liquids containing fibers and high solid content, gas-containing liquids or liquids prone to air entrainment. Even non-flowing viscous media can be transferred continuously.

Product Range

G / GS Series

Specs highlight: Max 128 m³/h · Max 1.2 MPa · Max 150°C

General-purpose horizontal eccentric helical rotor pump with flange connection (G series) or thread connection (GS series). Suitable for a wide range of viscous and non-viscous media.

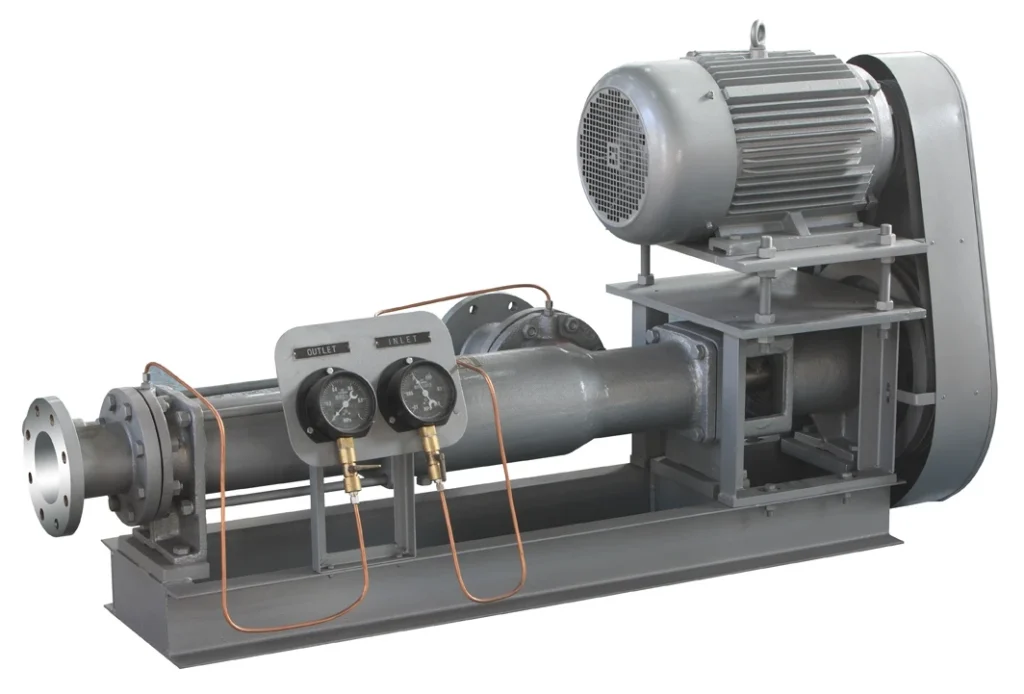

CTP G series eccentric helical rotor pump

EH Series (EH / E2H / E3H / E4H)

Specs highlight: EH max 300 m³/h · E4H max 2.4 MPa · Max 150°C

Multi-stage horizontal eccentric helical rotor pump range. EH (single stage, max 300 m³/h) through E4H (four-stage, max 2.4 MPa). Flange connection. For high-flow or high-pressure applications requiring multiple pressure stages.

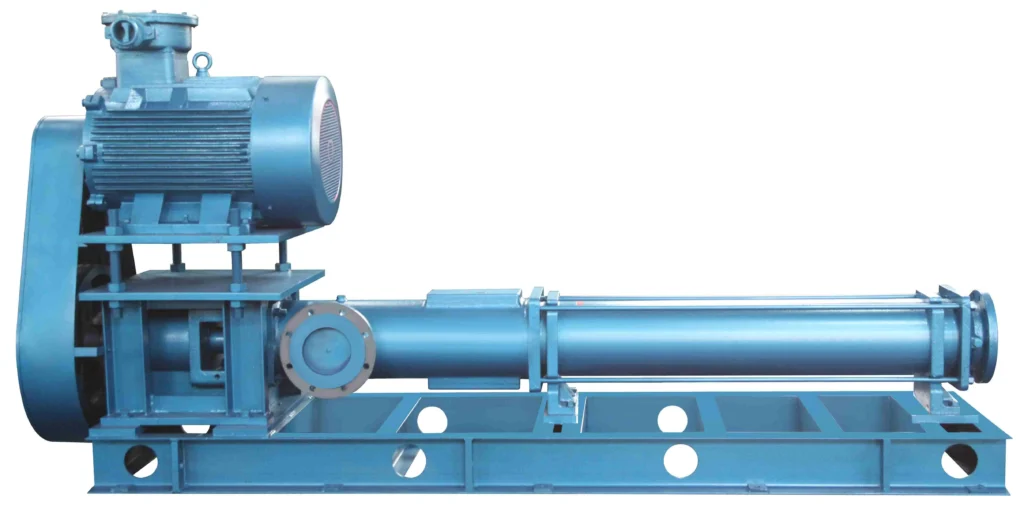

CTP EH series eccentric helical rotor pump — high pressure

EL Series (EL / E2L)

Specs highlight: EL max 95 m³/h · E2L max 1.2 MPa · Max 150°C

Compact horizontal eccentric helical rotor pump with flange connection. Available in single-stage (EL) and two-stage (E2L). For medium-flow applications with viscous or fibrous media.

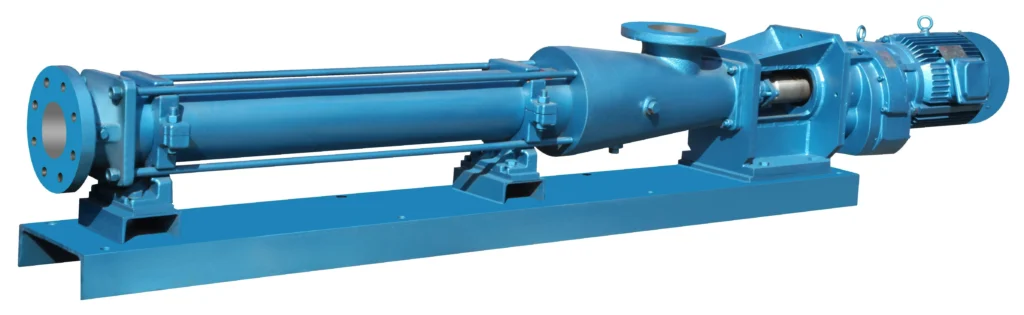

CTP EL series eccentric helical rotor pump

ER Series (ER / E2R / E4R)

Specs highlight: ER max 120 m³/h · E4R max 2.4 MPa · Max 150°C

Horizontal eccentric helical rotor pump with funnel-style inlet for handling thick, pasty or non-flowing media. Ideal for magma, sludge, paste and slurry transfer. Available in 1 to 4 pressure stages.

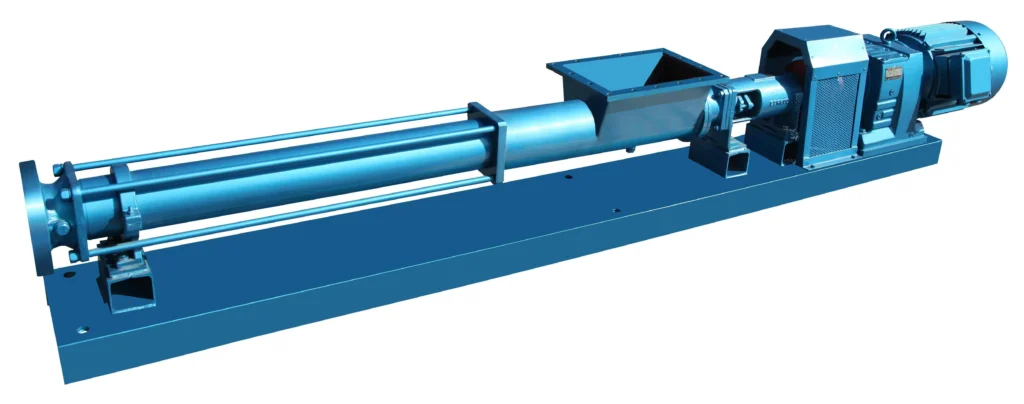

Eccentric helical rotor pump, E2R series by CTP — industrial progressive cavity pump with helical rotor mechanism

ES Series (ES / E2S)

Specs highlight: ES max 62 m³/h · E2S max 1.2 MPa · Max 150°C

Easy-clean design with thread connection. Designed for hygienic applications in food, pharmaceutical, and cosmetics industries where frequent cleaning or CIP (clean-in-place) is required.

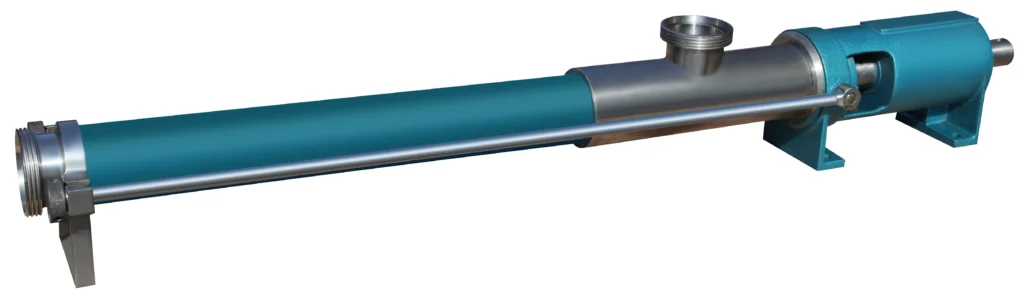

CTP E2S series eccentric helical rotor pump — easy clean

EU Series (EU / E2U)

Specs highlight: EU max 95 m³/h · E2U max 1.2 MPa · Max 150°C

Vertical submersible eccentric helical rotor pump. For installation in tanks, pits, or sumps where a submerged configuration is required. Available in single-stage (EU) and two-stage (E2U).

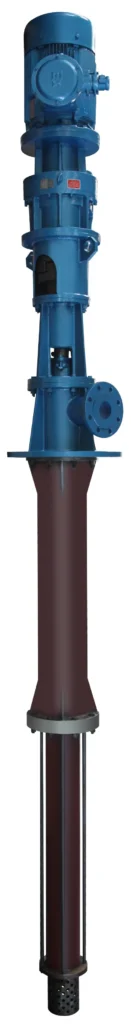

CTP E2U series eccentric helical rotor pump — vertical submersible

Technical Specifications

Series	Max Flow (m³/h)	Max Diff. Pressure (MPa)	Max Speed (rpm)	Max Temp. (°C)	Max Viscosity (cSt)	Installation
G	max. 128	max. 1.2	960	150	10⁶	Horizontal, flange
GS	max. 20	max. 1.2	960	150	10⁶	Horizontal, thread
EH	max. 300	max. 0.6	960	150	10⁶	Horizontal, flange
E2H	max. 140	max. 1.2	960	150	10⁶	Horizontal, flange
E3H	max. 71	max. 1.8	960	150	10⁶	Horizontal, flange
E4H	max. 38	max. 2.4	960	150	10⁶	Horizontal, flange
EL	max. 95	max. 0.6	960	150	10⁶	Horizontal, flange
E2L	max. 74	max. 1.2	960	150	10⁶	Horizontal, flange
ER	max. 120	max. 0.6	500	150	10⁶	Horizontal, funnel inlet
E2R	max. 46	max. 1.2	500	150	10⁶	Horizontal, funnel inlet
E4R	max. 21	max. 2.4	500	150	10⁶	Horizontal, funnel inlet
ES	max. 62	max. 0.6	960	150	10⁶	Horizontal, easy-clean, thread
E2S	max. 46	max. 1.2	960	150	10⁶	Horizontal, easy-clean, thread
EU	max. 95	max. 0.6	960	150	10⁶	Vertical submersible
E2U	max. 74	max. 1.2	960	150	10⁶	Vertical submersible
EP	max. 28	max. 8.0	960	150	10⁶	Horizontal, flange

Overall Range Summary

Capacity	max. 400 m³/h
Diff. Pressure	max. 2.4 MPa
Temperature	max. 150 ℃
Viscosity	max. 2.7×10⁵ cSt

Need a datasheet for a specific series?

Download Product Brochures →

Not sure this model fits your application?

Use Pump Selection Tool →

Bornemann Technology Certification

In 1994, our company introduced eccentric helical rotor pump manufacturing technology from Bornemann, Germany. After years of continuous improvement and R&D, all our products have reached an advanced level of standardization, serialization, and universalization.
