Twin Screw Pumps

CTP Pumps manufactures twin screw pumps under technology licensed from Bornemann GmbH, Germany since 1993. Our 9-series range covers horizontal and vertical configurations, welded and cast pump casings, and external or internal bearing structures to meet virtually any industrial transfer requirement.

Twin screw pumps deliver smooth, nearly pulsation-free flow with insensitivity to impurities in the medium — making them the preferred choice for viscous, corrosive, and multiphase fluids across the most demanding industrial sectors.

Design Features

Good self-priming ability
Simple structure
Economical & durable
Insensitive to impurities in the liquid
High usability & reliability

Application Fields

The pump can be installed in lubrication systems, hydraulic systems, and equipment cooling systems. It is widely used in shipbuilding, metallurgy and steel production, petroleum and chemical industries, power plants, as well as mechanical machining and manufacturing applications.

Media To Be Transferred

The pump is suitable for transferring various fluids, including lubricating oil, mineral oil, synthetic hydraulic fluid, and natural oils. Fluids with poor lubricating properties—such as light and heavy fuel oil, coal tar oil, asphalt, viscose fluids, and emulsions—can also be transferred reliably and efficiently.

Product Range

W Series

Specs highlight: Max 2,000 m³/h · Max 4.0 MPa · Max 250°C

Standard horizontal twin screw pump. High-flow, moderate-pressure series for large-scale transfer of oils, fuels and viscous fluids.

CTP W series twin screw pump — horizontal

SW Series

Specs highlight: Max 2,700 m³/h · Max 1.6 MPa · Max 120°C

The highest-capacity series in the CTP twin screw range. Horizontal installation. Ideal for large-volume, lower-pressure transfer of crude oil, heavy fuel oil and process fluids.

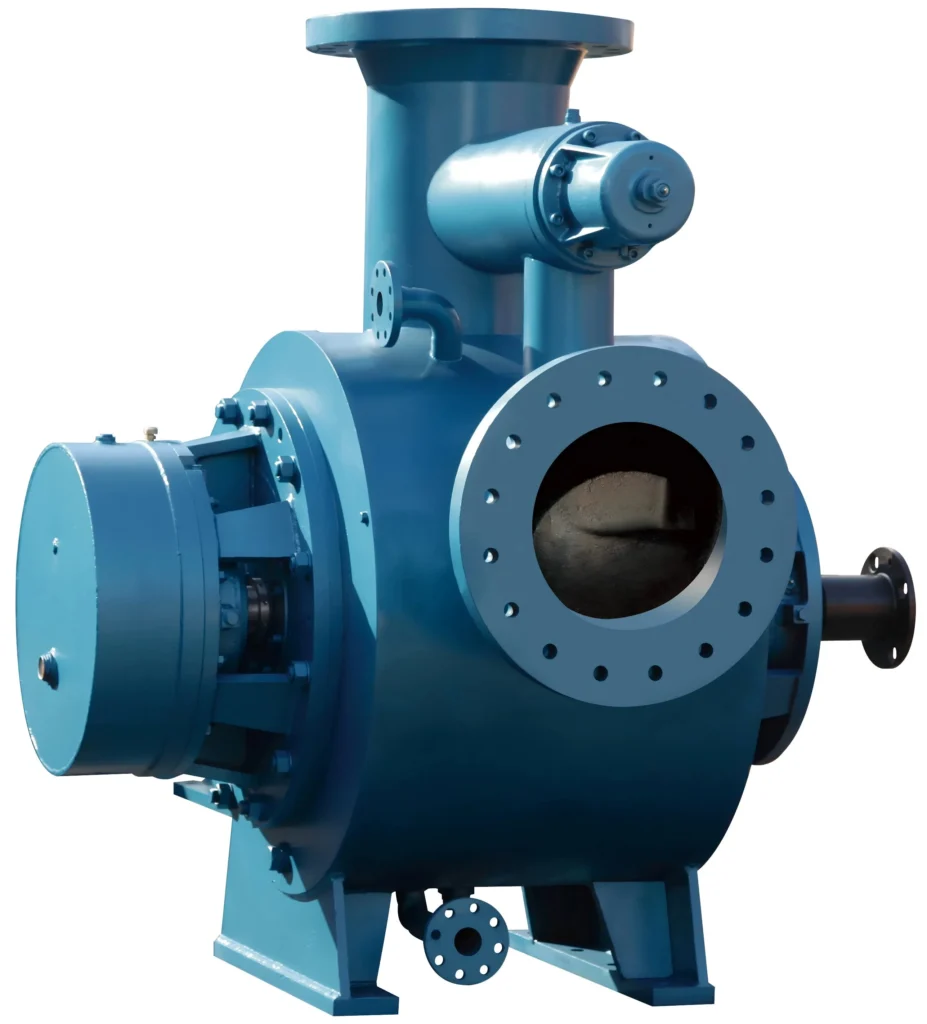

CTP SW series twin screw pump — horizontal high flow

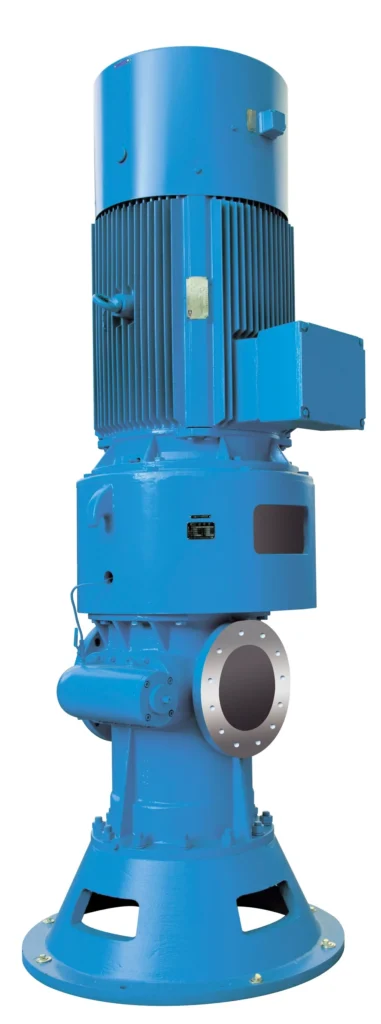

V Series

Specs highlight: Max 1,200 m³/h · Max 4.0 MPa · Max 250°C

Standard vertical twin screw pump. For applications requiring compact vertical installation while maintaining high-flow and moderate-pressure performance.

SV Series

Specs highlight: Max 1,800 m³/h · Max 1.6 MPa · Max 120°C

High-capacity vertical twin screw pump. Suitable for cargo transfer, lubricating oil supply and fuel oil systems in marine and industrial applications.

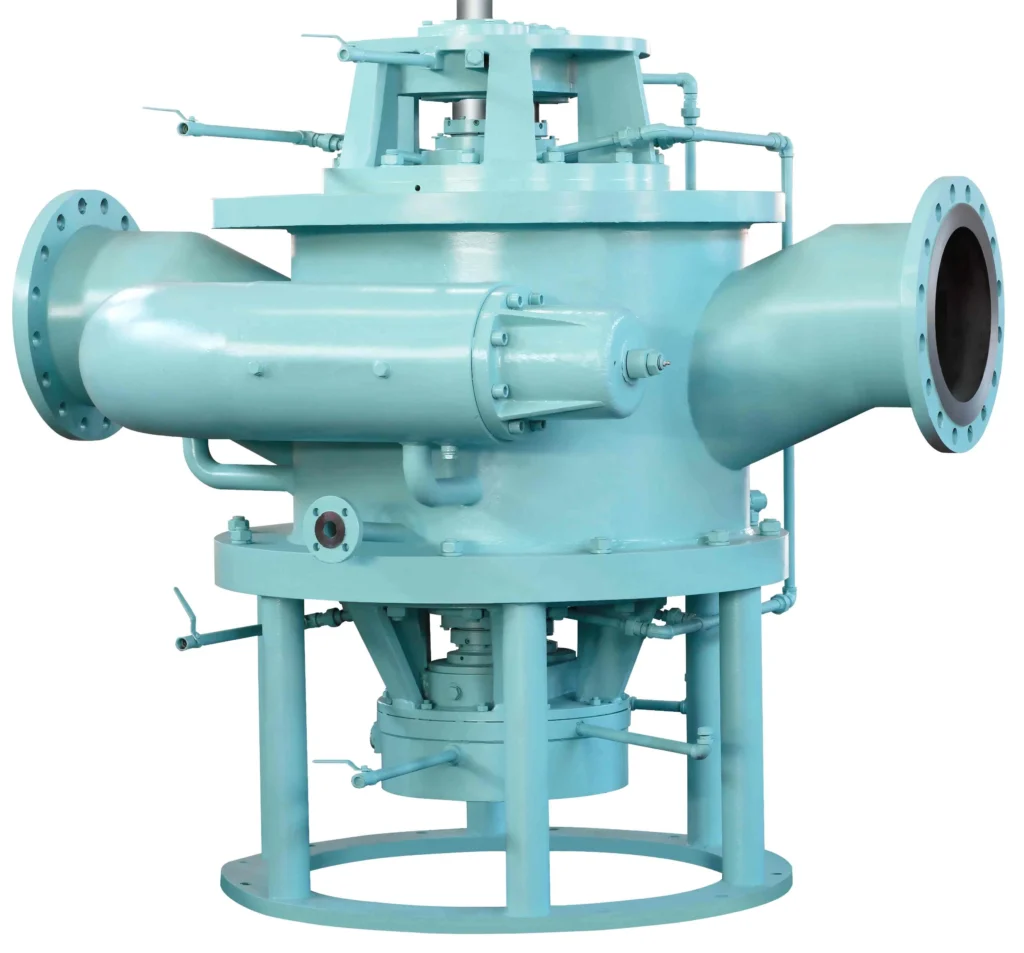

CTP SV series twin screw pump — vertical high flow

HPW Series

Specs highlight: Max 1,000 m³/h · Max 10.0 MPa · Max 100°C

The highest-pressure series in the CTP twin screw range, rated to 10.0 MPa. Horizontal installation. For high-pressure transfer and injection applications in oil & gas and petrochemical industries.

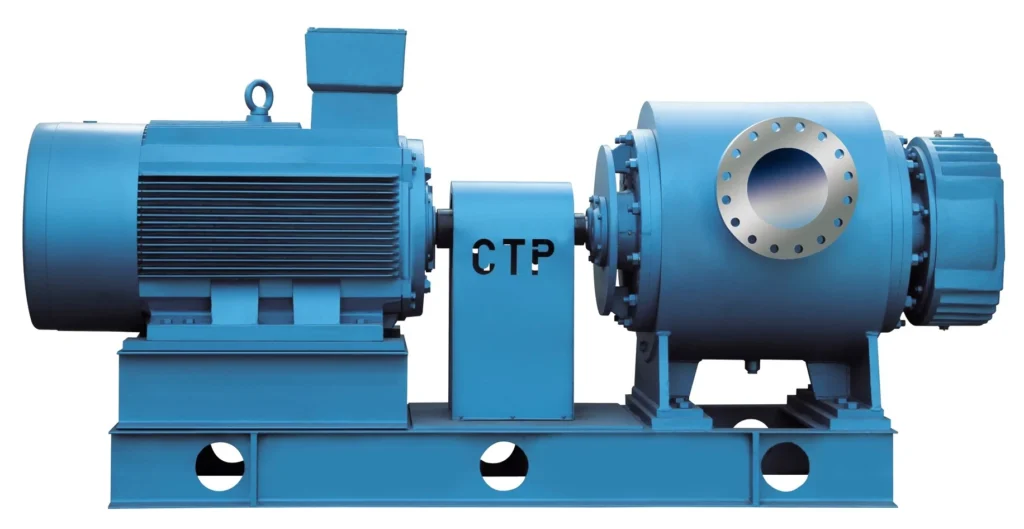

CTP HPW series twin screw pump — high pressure

2G Series

Specs highlight: Max 350 m³/h · Max 1.4 MPa · Max 180°C

Compact horizontal twin screw pump for general industrial liquid transfer. Widely used for lubricating oils, fuel oils, food products and chemical fluids at moderate flow and pressure.

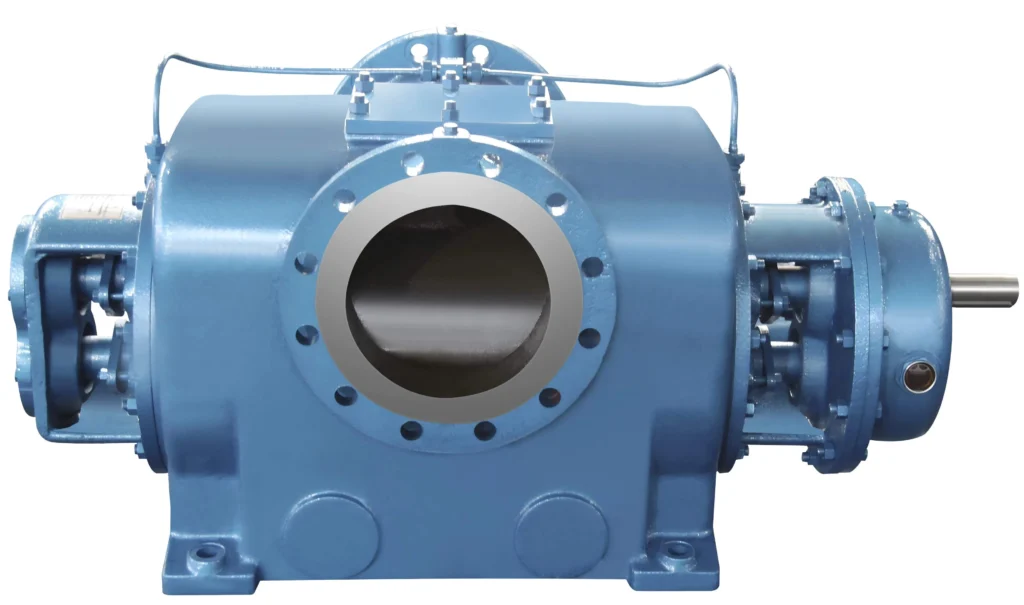

Twin screw pump, 2G series — industrial positive displacement pump with dual intermeshing screws for fluid transfer

HW Series

Specs highlight: Max 2,000 m³/h · Max 5.0 MPa · Multiphase flow

Heavy-duty horizontal twin screw pump specifically designed for multiphase flow applications — handling mixed gas-liquid flows. Widely used in oil field production, offshore platforms and upstream gas-liquid separation systems.

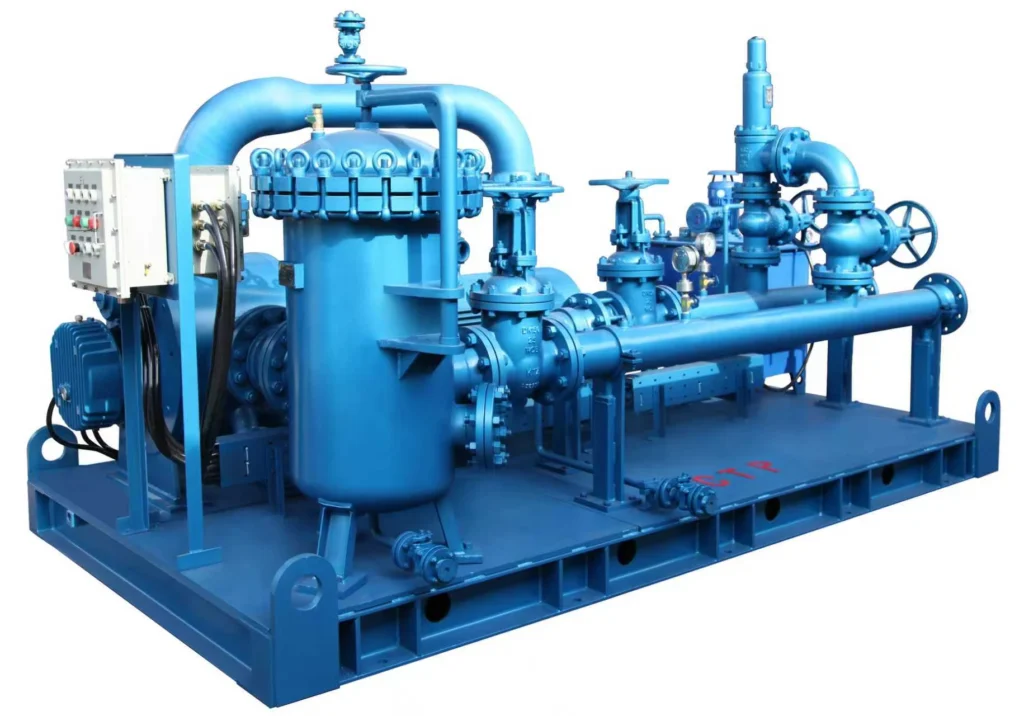

CTP HW series twin screw pump — multiphase

Technical Specifications

Series	Max Flow (m³/h)	Max Diff. Pressure (MPa)	Max Speed (rpm)	Max Temp. (°C)	Max Viscosity (cSt)	Installation
W	max. 2,000	max. 4.0	1,800	250	10⁵	Horizontal
SW	max. 2,700	max. 1.6	1,800	120	10⁵	Horizontal
V	max. 1,200	max. 4.0	1,800	250	10⁵	Vertical
SV	max. 1,800	max. 1.6	1,800	120	10⁵	Vertical
U	40–1,000	max. 1.0	1,800	80	10⁵	Submersible
HPW	max. 1,000	max. 10.0	1,800	100	10⁵	Horizontal
W.Kse	max. 70	max. 1.2	1,800	250	10⁵	Horizontal
2G	max. 350	max. 1.4	1,800	180	10⁵	Horizontal
HW	max. 2,000	max. 5.0	1,800	180	10⁵	Horizontal (multiphase)

Overall Range Summary

Capacity	max. 2,700 m³/h
Diff. Pressure	max. 10.0 MPa
NPSH	min. 1.5 m
Speed	max. 1,800 rpm
Temperature	max. 400 ℃
Viscosity	max. 10⁵ cSt

Need a datasheet for a specific series?

Download Product Brochures →

Not sure this model fits your application?

Use Pump Selection Tool →

Bornemann Technology Certification

In 1993, our company introduced twin screw pump manufacturing technology from Bornemann, Germany. After years of continuous improvement and R&D, all our products have reached an advanced level of standardization, serialization, and universalization.
