Centrifugal Pumps

CTP Pumps introduced marine centrifugal pump manufacturing technology from Taiko, Japan in 1994. Engineered specifically for the demands of ships and offshore platforms, our centrifugal pump range covers 12 series spanning cooling water, ballast, fire-fighting, bilge, sanitary and lubrication duties.

Every series is designed to meet international marine standards, with approved certifications from BV, CCS, DNV, GL and LR — the world’s leading classification societies. Our designs account for the full operating environment of a vessel: 60Hz power supply, dynamic loads from inclination and ship movement, and the need for reliable self-priming at sea.

Design Features

The rotor is designed for 60 Hz, therefore the pump operates far away from the critical speed, running smoothly with low vibration and noise. The product’s strength and stiffness are both designed according to 60 Hz operating conditions.
The bearing design life fully takes into account the additional loads caused by ship inclination and rolling, with a bearing design life of over 10,000 hours.
The unit noise is below 85 dB, protecting you from noise disturbance.
We currently offer air-driven, mechanical, and electric self-priming devices to meet self-priming requirements under different conditions.

CTP Pumps centrifugal pump cutaway view — cross-section diagram showing internal impeller mechanism and fluid flow path

Application Fields

Centrifugal pumps are widely used in the petroleum refining, petrochemical, chemical, and other industries to deliver clean liquids, including gas oil, diesel oil, and water.

Product Range

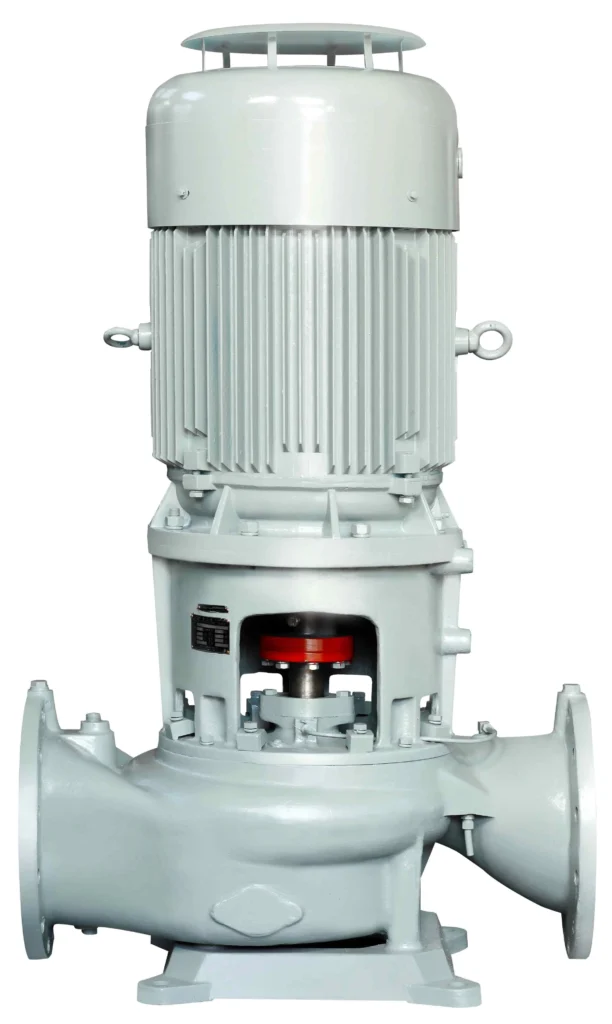

EMC Series

Specs highlight: 5–500 m³/h · 10–130 m lift · 1,450/2,950/1,750/3,550 rpm

Vertical single-stage, single-suction centrifugal pump with rigid motor direct-drive connection. Suited for cooling water, ballast, general service and bilge duties. The most widely deployed series for standard shipboard pumping.

CTP EMC series marine centrifugal pump — vertical single-stage with rigid motor connection

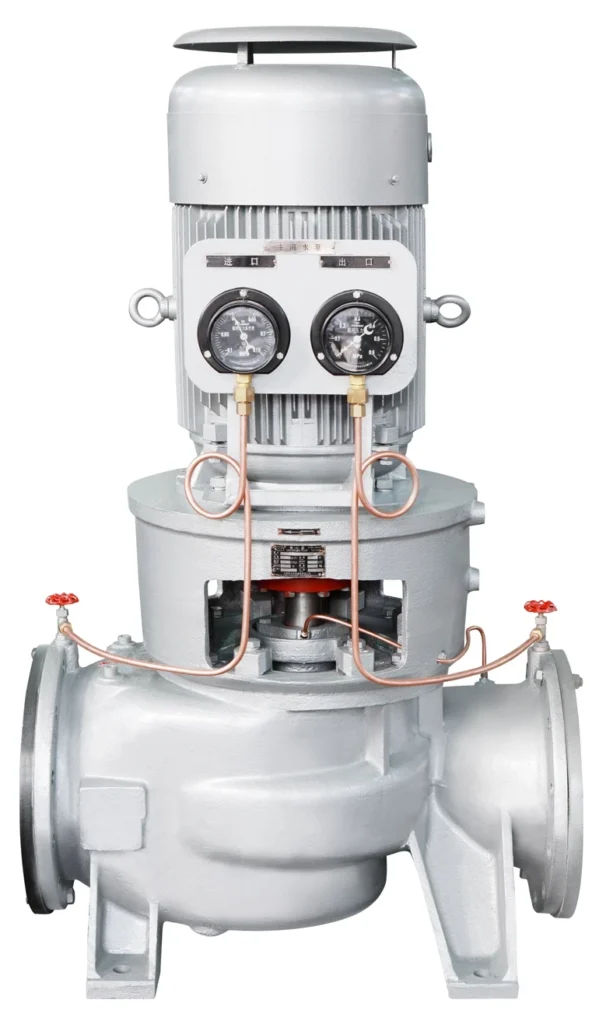

EMD Series

Specs highlight: 250–3,000 m³/h · 8–60 m lift · 970/1,450/1,150/1,750 rpm

High-flow vertical centrifugal pump for large-vessel cooling water, ballast and circulating water systems. Rigid motor connection for compact installation. Handles up to 3,000 m³/h — the highest flow in the CTP marine range.

CTP EMD series marine centrifugal pump — high-flow vertical with rigid motor connection

ESC Series

Specs highlight: 25–500 m³/h · 10–70 m lift · 1,450/2,950 rpm

Vertical single-stage, single-suction centrifugal pump for cooling water, ballast, general service and bilge applications. Standard motor coupled version for applications where rigid motor mounting is not required.

CTP ESC series marine centrifugal pump — vertical single-stage

VS Series

Specs highlight: 60–700 m³/h · 15–82 m lift · 1,450/1,750 rpm

Vertical double-stage, single-suction centrifugal pump for fire-fighting, ballast and general service. Dual-stage design delivers higher head than single-stage pumps at the same flow range.

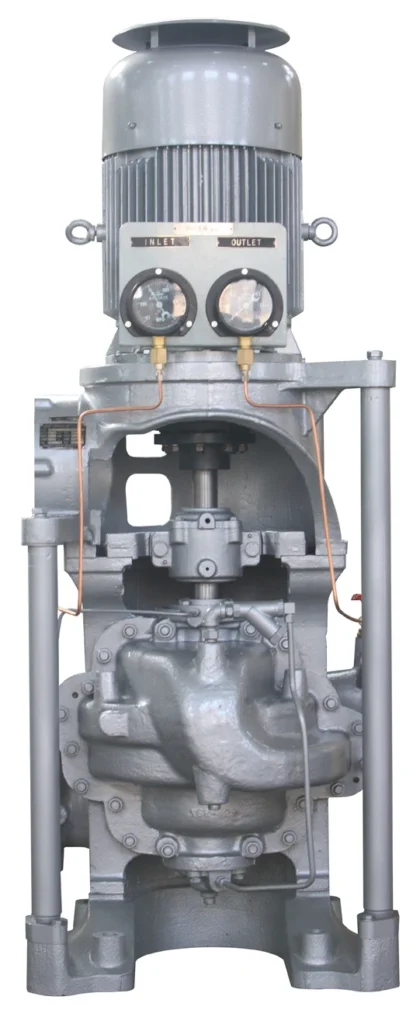

CTP VS-S series marine centrifugal pump — vertical dissected in-series or parallel

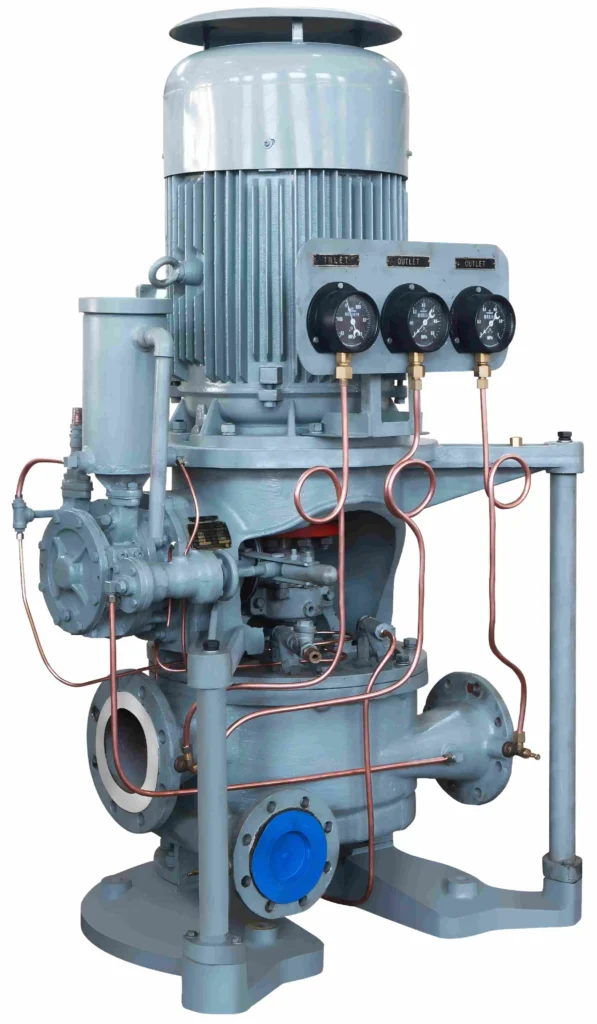

ESN Series

Specs highlight: 50–250 m³/h · 20–140 m lift · 1,450/1,750 rpm

Vertical double-stage, double-outlet centrifugal pump for fire-fighting, ballast and general service. The highest head range (up to 140 m) in the standard series lineup.

CTP ESN series marine centrifugal pump — vertical double-stage double-outlet

EHC Series

Specs highlight: 3–300 m³/h · 1,450/2,950/1,750/3,550 rpm

Vertical single-stage self-priming centrifugal pump for cooling water, ballast, sanitary and general service. Self-priming capability allows installation above waterline without additional priming systems.

CTP EHC series marine centrifugal pump — vertical self-priming single-stage

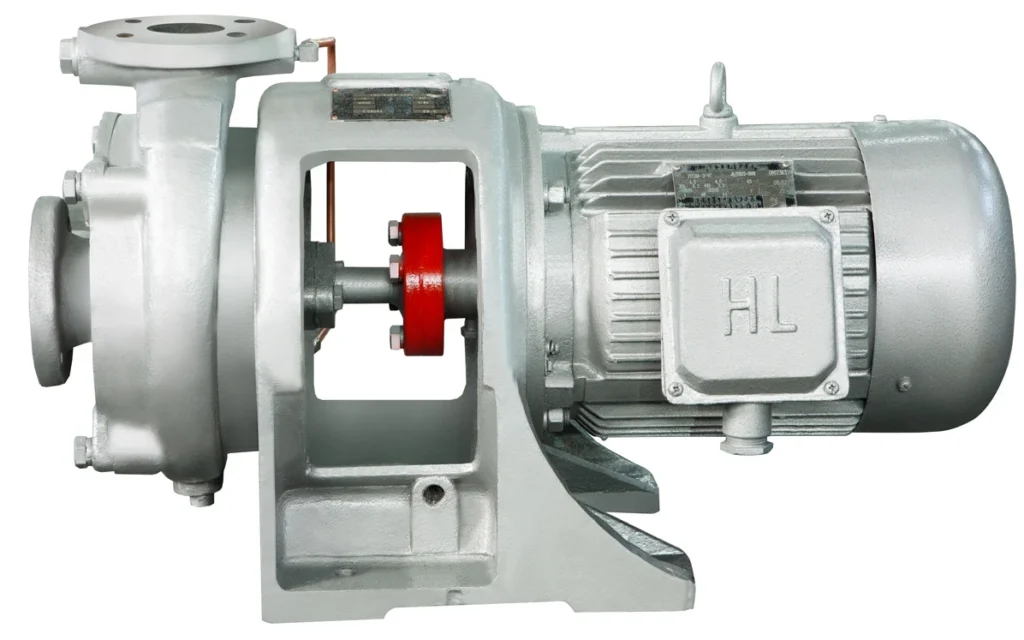

TMC Series

Specs highlight: 3–150 m³/h · 7–70 m lift · 1,450/2,950/1,750/3,550 rpm

Horizontal single-stage centrifugal pump with rigid motor direct-drive connection. Compact design suited for cooling water and sanitary systems where horizontal installation is preferred.

CTP TMC series marine centrifugal pump — horizontal rigid motor connection

EHS Series

Specs highlight: 3–350 m³/h · 7–130 m lift · 1,450/2,950/1,750/3,550 rpm

Horizontal single-stage self-priming centrifugal pump for cooling water, ballast, sanitary and general service. Broadest flow-head coverage in the horizontal self-priming category.

CTP EHS series marine centrifugal pump — horizontal self-priming single-stage

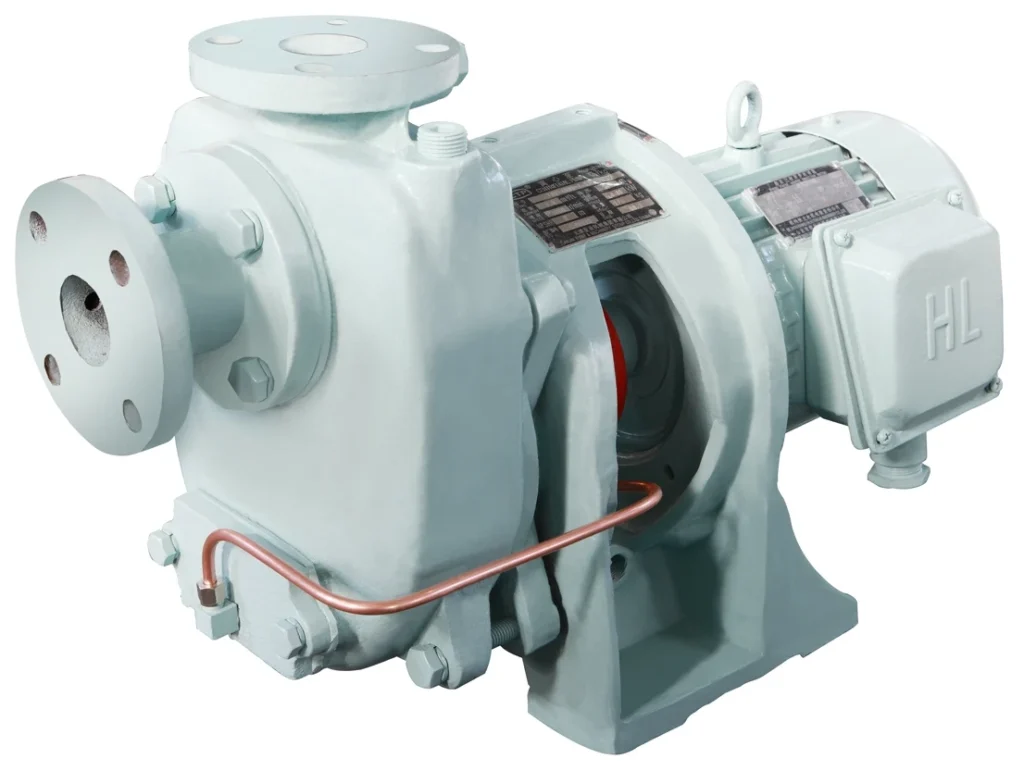

TMS Series

Specs highlight: 3–150 m³/h · 6–50 m lift · 1,450/2,950/1,750/3,550 rpm

Horizontal self-priming centrifugal pump with rigid motor connection. Combines the compact rigid-drive format of the TMC with self-priming capability for above-waterline installations.

CTP TMS series marine centrifugal pump — horizontal self-priming rigid motor

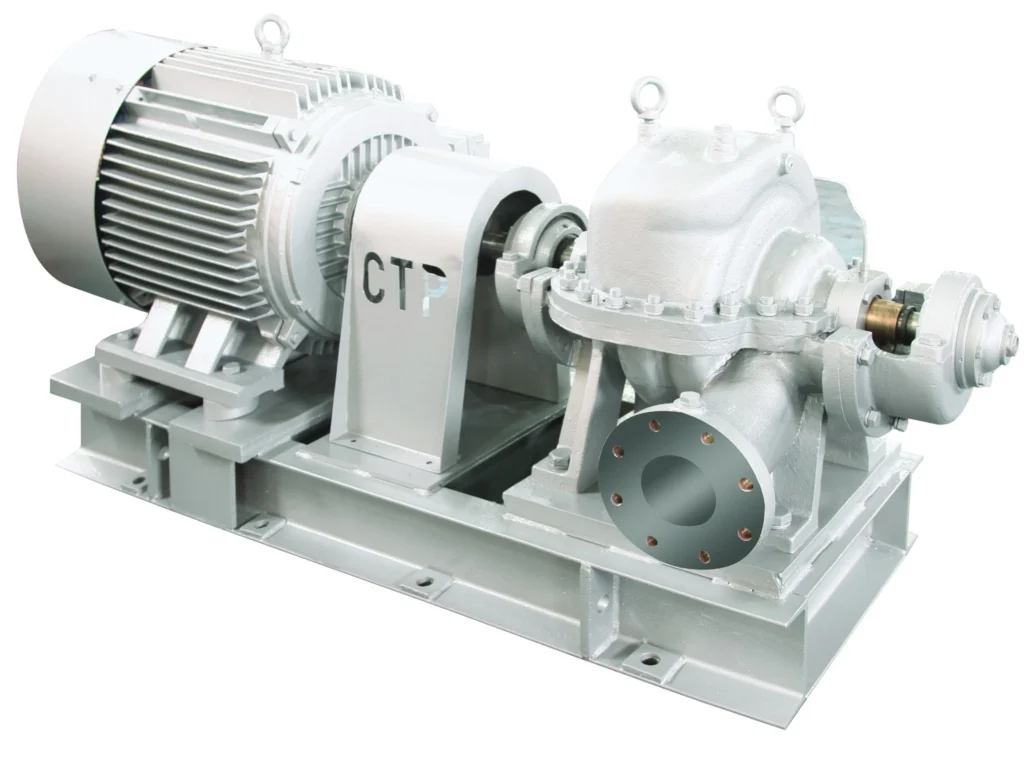

HDS Series

Specs highlight: 30–350 m³/h · 45–300 m lift · 1,450/2,950/1,750/3,550 rpm

Horizontal double-stage, single-suction centrifugal pump for gland water, cooling water and fire-fighting at high head requirements. Delivers up to 300 m of head — the highest in the CTP centrifugal range.

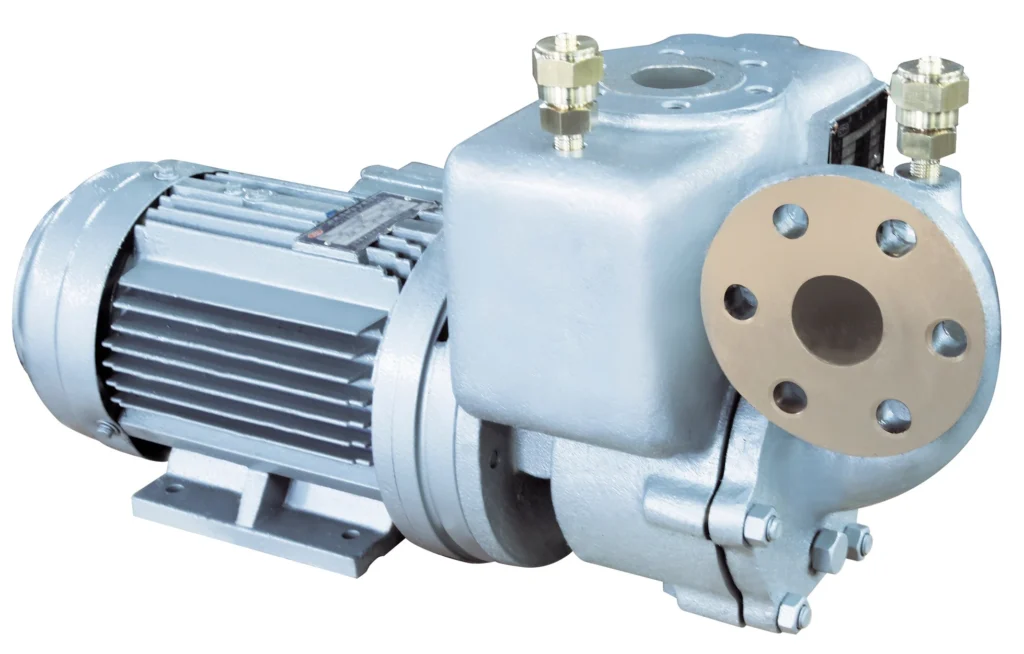

1.5CWX Series

Specs highlight: 3–10 m³/h · 35–70 m lift · 2,950/3,550 rpm

Horizontal self-priming turbine pump for fresh water and sea water service. Compact, high-speed design for small-flow, moderate-head applications such as sanitary and domestic water supply on board.

CTP 1.5CWX series marine turbine pump for fresh and sea water

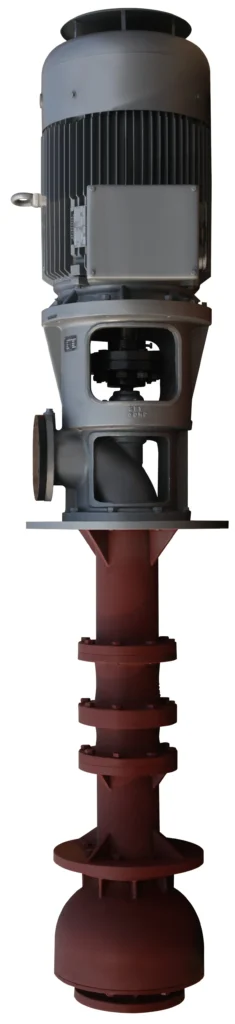

EFY Series

Specs highlight: 10–600 m³/h · 1,450/1,750/2,950/3,500 rpm

Vertical submersible centrifugal pump covering a wide flow range of 10–600 m³/h. Multi-speed variants available. Used across a broad range of submersible pumping duties on ships and offshore platforms.

CTP EFY series vertical submersible centrifugal pump

Technical Specifications

Series	Type	Flow (m³/h)	Lifting (m)	Speed (rpm)	Duty Application
EMC	Vertical single-stage, rigid motor	5–500	10–130	1,450/2,950/1,750/3,550	Cooling water / Ballast / General service / Bilge
EMD	Vertical single-stage, rigid motor (high-flow)	250–3,000	8–60	970/1,450/1,150/1,750	Cooling water / Ballast / Circulating water
ESC	Vertical single-stage	25–500	10–70	1,450/2,950	Cooling water / Ballast / General service / Bilge
ESD	Vertical single-stage (high-flow)	250–2,000	8–45	970/1,450/1,150/1,750	Cooling water / Ballast / Circulating water
VS-S	Vertical, in-series or parallel	60–700	15–82	1,450/1,750	Fire-fighting / Ballast / General service
VS	Vertical double-stage	60–700	15–82	1,450/1,750	Fire-fighting / Ballast / General service
ESN	Vertical double-stage, double-outlet	50–250	20–140	1,450/1,750	Fire-fighting / Ballast / General service
EHC	Vertical single-stage (self-priming)	3–300	—	1,450/2,950/1,750/3,550	Cooling water / Ballast / Sanitary / General service
TMC	Horizontal, rigid motor	3–150	7–70	1,450/2,950/1,750/3,550	Cooling water / Sanitary
EHS	Horizontal self-priming	3–350	7–130	1,450/2,950/1,750/3,550	Cooling water / Ballast / Sanitary / General service
TMS	Horizontal self-priming, rigid motor	3–150	6–50	1,450/2,950/1,750/3,550	Cooling water / Sanitary
HDS	Horizontal double-stage	30–350	45–300	1,450/2,950/1,750/3,550	Gland water / Cooling water / Fire-fighting
1.5CWX	Horizontal self-priming turbine pump	3–10	35–70	2,950/3,550	Fresh water / Sea water
VDF	Vertical submersible oil pump	max. 1,000	10	1,450	Equipment lubrication
EFY	Vertical submersible	10–600	—	1,450/1,750/2,950/3,500	Submersible pumping

Overall Range Summary

Capacity	max. 5,000 m³/h
Total Head	max. 270 m
Speed	max. 3,600 rpm
Temperature	max. 80 ℃
Media	Fresh water / Sea water

Need a datasheet for a specific series?

Download Product Brochures →

Not sure this model fits your application?

Use Pump Selection Tool →

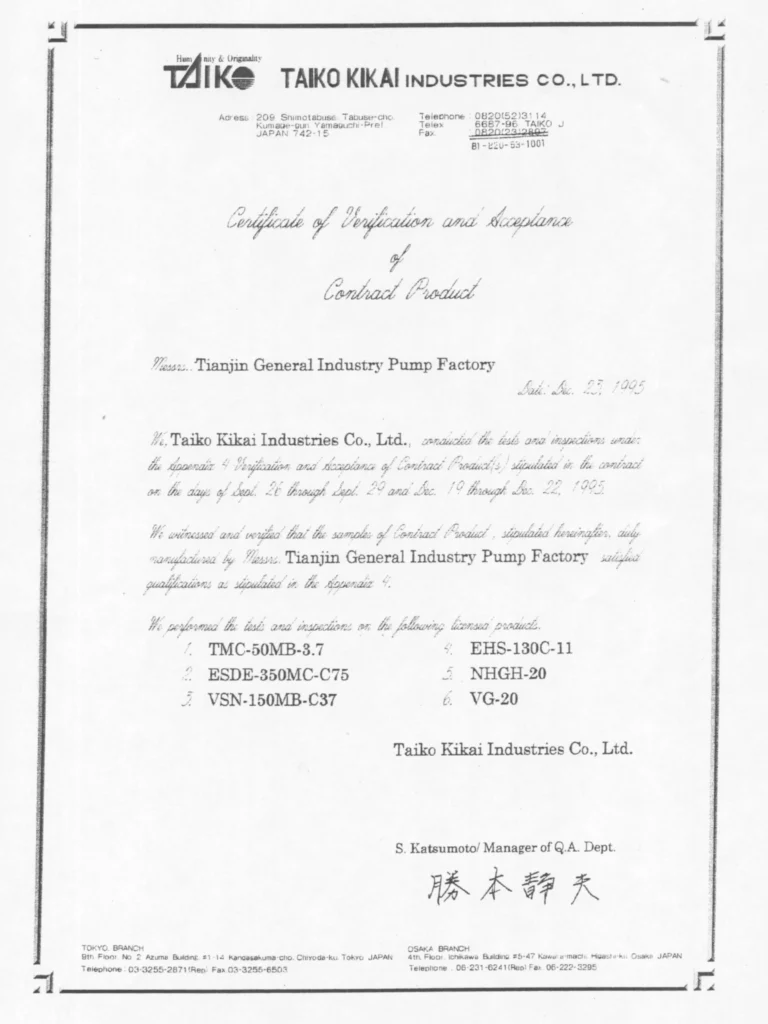

Taiko Kikai Technology Certification

In 1995, our company introduced centrifugal pump manufacturing technology from Taiko Kikai, Japan. After years of continuous improvement and R&D, all our products have reached an advanced level of standardization, serialization, and universalization.
